WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Brand Name : WNK

Model Number : WNK80MA

Certification : CE&UL

Place of Origin : China

MOQ : 1 Ppiece

Payment Terms : T/T, Paypal, West union

Supply Ability : 1000

Delivery Time : 3-5 days

Packaging Details : Standard Packing or as per your requirement

Output : 24VDC/12VDC/5VDC/3.3V

Pressure range : 0~15MPa

Measured media : Liquid, gas and steam

Electrical connection : Packard, M12, DIN43650, Cable

Housing material : Alunimum/Brass/SST 304

Key words : Pressure sensor

IP rate : IP65

Prorocess conection : G1/2, G1/4, M2x1.5NPT1/4, customization

Contact Now

WNK 4-20ma 0.5-4.5V Pressure Sensors 150Psi Pressure Transmitter

WNK 4-20ma150Psi Pressure Transmitter

Product Description

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0-60bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.2% 0.5% 1.0% FS.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

>>> Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems

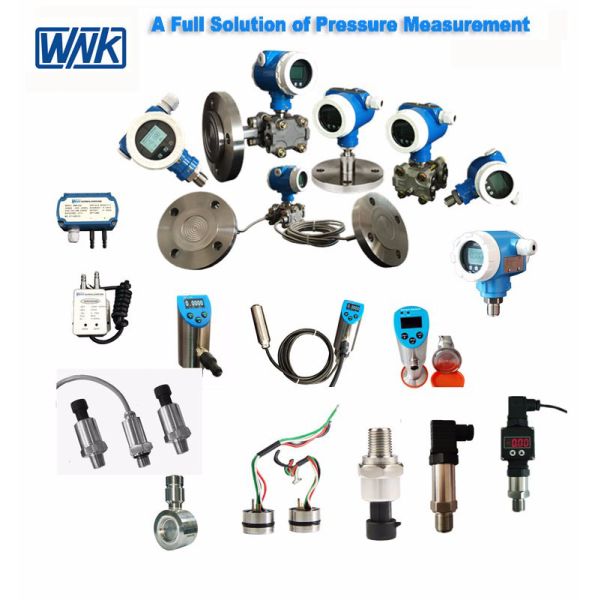

Product Show

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Product Tags:

WNK 4 - 20ma Pressure Transmitter

IP65 4 - 20ma Pressure Sensor

IP65 4 - 20ma Pressure Transmitter

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65 Images
